Pictures of the right side of the engine

Message par JRF »

Hi all. I'm in need of pictures of the right side of the engine. I need to know where the tubes to and from the extra airvalve goes and waterhoses and so on. If anyone could provide pictures of this I'd appreciate it a lot.

Avatar du membre
Frank
membre du GGCC
Messages : 2085
Enregistré le : jeu. 3 juin 2010 12:54
Localisation : Dans les étoiles

Re: Pictures of the right side of the engine

Message par Frank »

the ride side c'est le moteur coté face avant :?: :bizarre:

Séb
Corse 2013
Corse 2013
Messages : 107
Enregistré le : ven. 11 mars 2011 19:33

Re: Pictures of the right side of the engine

Message par Séb »

A mon avis c'est plutôt right côté droit, pour le reste il faut un traducteur, a mon avis il a un problème de poulies et de supports, vu que c'est spécifique.
Si on arrive à comprendre, on devrait pouvoir le dépanner :up:

Avatar du membre
Gilloo
Scotland 2023
Scotland 2023
Messages : 4631
Enregistré le : ven. 19 févr. 2010 16:38
Localisation : Joué sur Erdre

Re: Pictures of the right side of the engine

Message par Gilloo »

Salut/Hello,

En fait, JRF a besoin de photos montrant les durites qui vont au registre d'air additionnel et les durites/pipes d'eau (chauffage ?), qui ne sont pas au même endroit sur une Oett que sur les autres G1

@ JRF : When you say you need pics of the right side of the engine, is it the right side when you are driving or when you are looking at the engine from the front (I guess this is this right you are talking about) ?
Could you be more precise on the points you want a picture of ?

You can have a look there while waiting for more info : http://golfoo.net/forum/viewtopic.php?t ... sc&start=0

JRF
Messages : 78
Enregistré le : lun. 14 mars 2011 21:53

Re: Pictures of the right side of the engine

Message par JRF »

Sorry for being unclear. I'm meaning the right side when you stand in front of the engine. I would like pictures of the tubes going in and out of le registre d'air additionel and where they go to. It's been quite a while since I demolished the engine and I have plainly forgotten how it was supposed to be ;p...

Avatar du membre
Frank
membre du GGCC
Messages : 2085
Enregistré le : jeu. 3 juin 2010 12:54
Localisation : Dans les étoiles

Re: Pictures of the right side of the engine

Message par Frank »

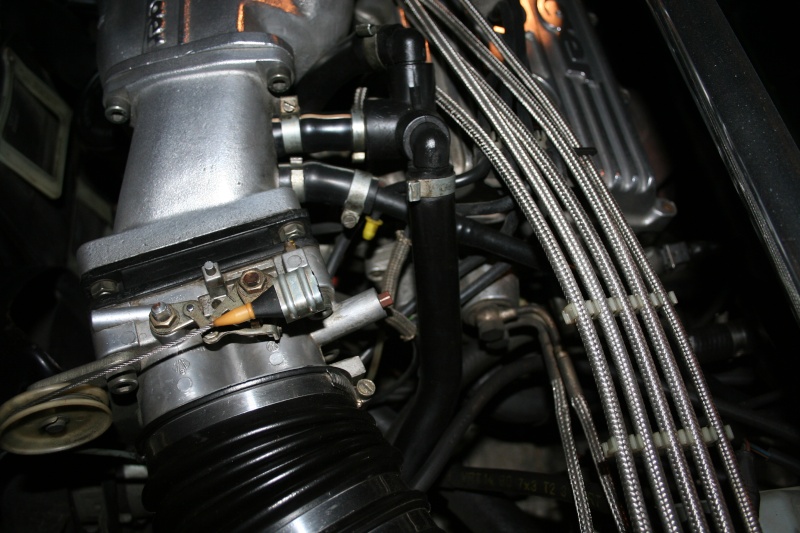

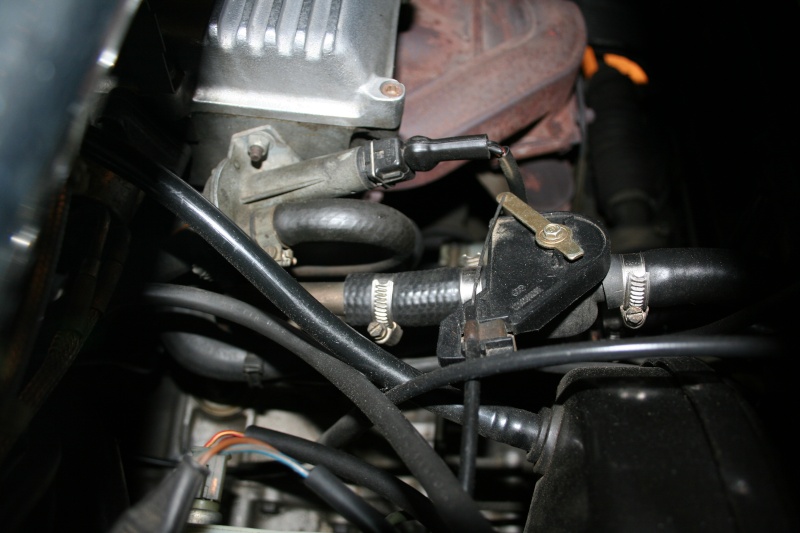

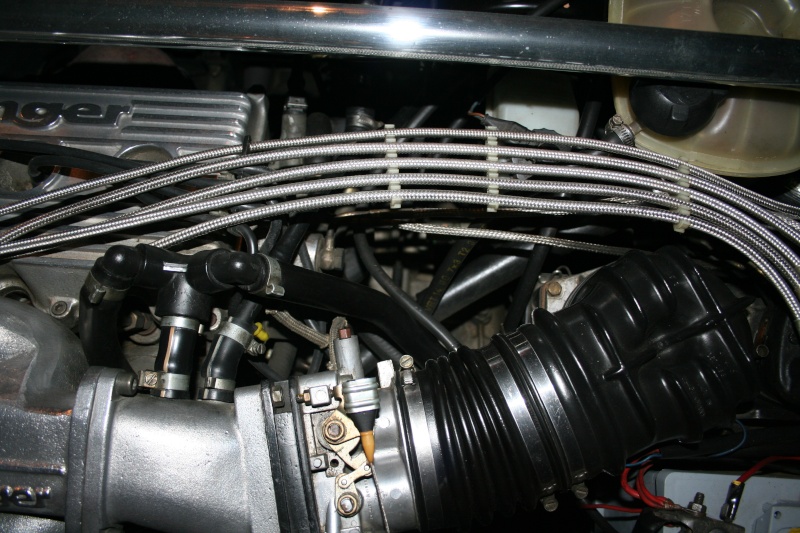

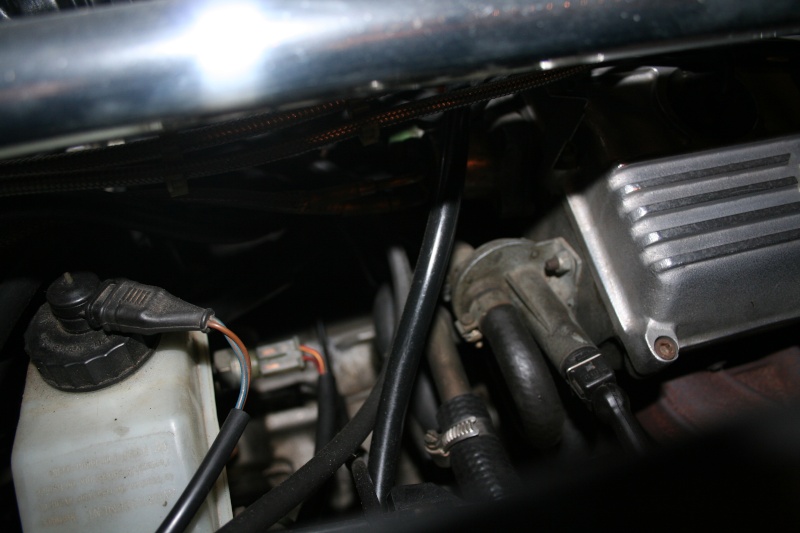

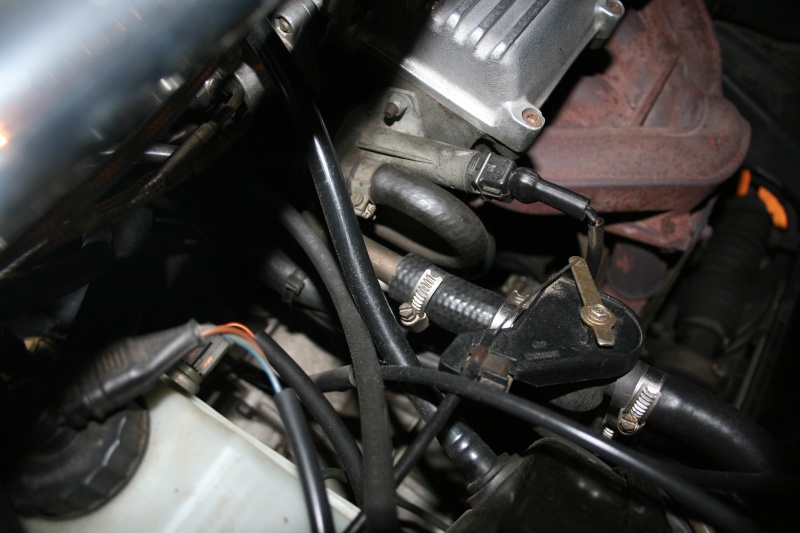

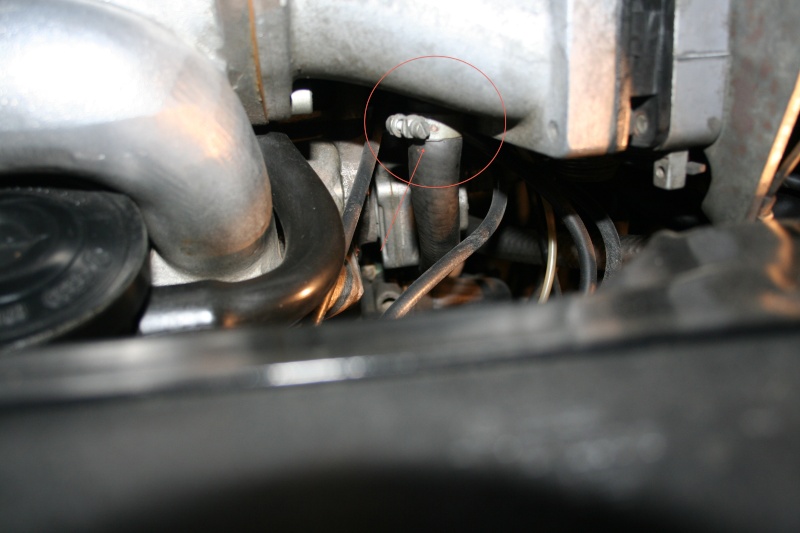

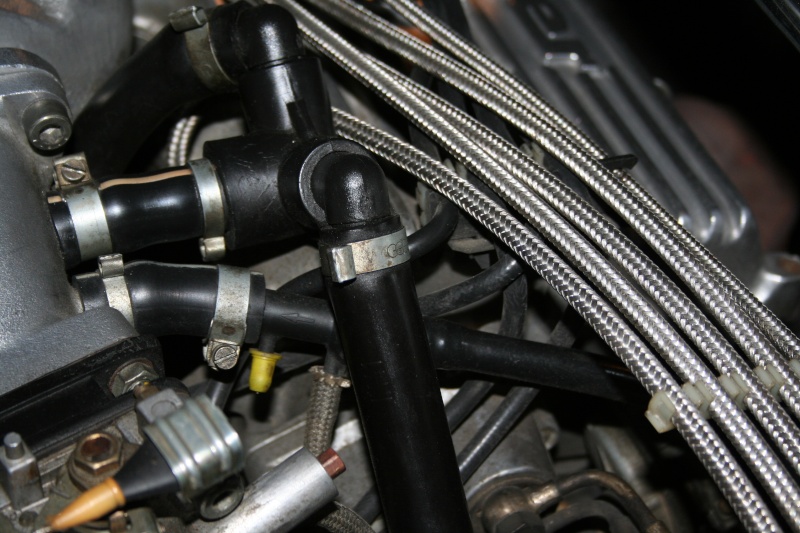

Thanks guys for your help :wink: JRF, it is not easy to take pictures on the right of the engine, i hope you will fine that you want, il you want more, say it to me.









:wink: :wink:
Modifié en dernier par Frank le ven. 8 juil. 2011 09:36, modifié 3 fois.

JRF
Messages : 78
Enregistré le : lun. 14 mars 2011 21:53

Re: Pictures of the right side of the engine

Message par JRF »

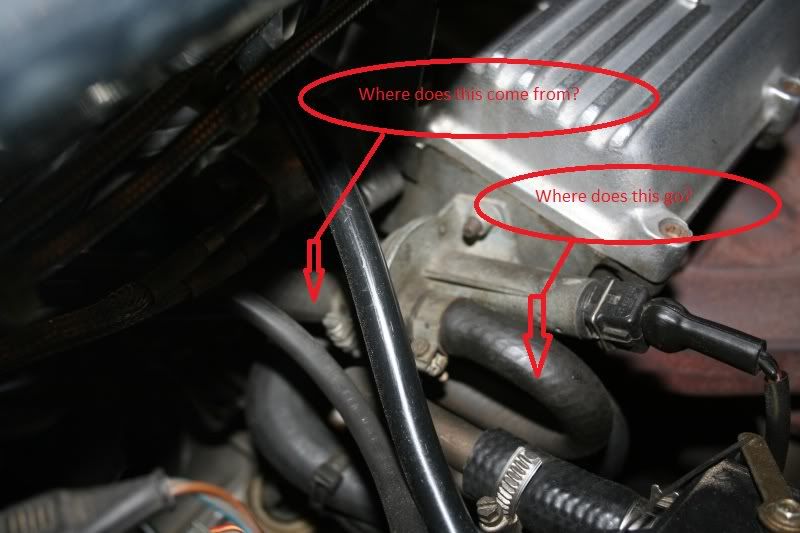

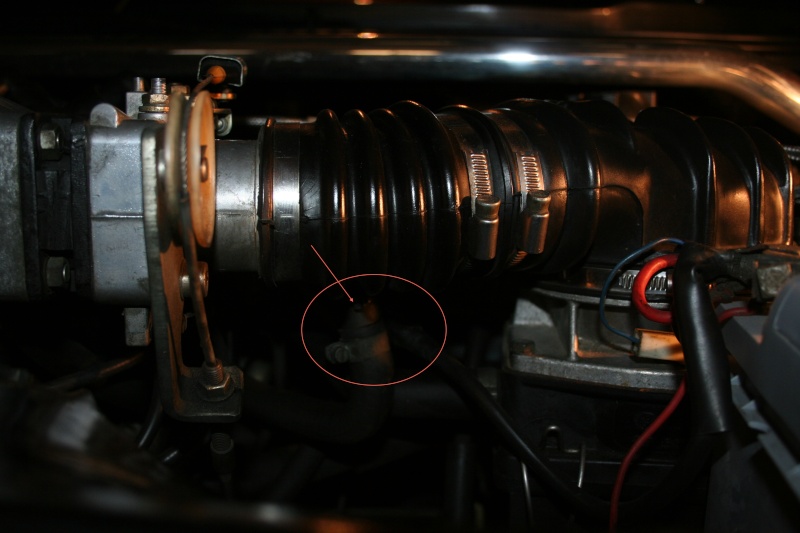

Frank! You are my saviour once again! Thank you so much for stepping up with your digital camera every time this amateur from Norway asks for help! :) It sure is crammed and full of wires and hoses on that side of the engine. Below is a picture of what I need to know first. I think I can work the rest of it out... If not, you will hear from me again... Thanks again Frank!


Avatar du membre
Frank
membre du GGCC
Messages : 2085
Enregistré le : jeu. 3 juin 2010 12:54
Localisation : Dans les étoiles

Re: Pictures of the right side of the engine

Message par Frank »

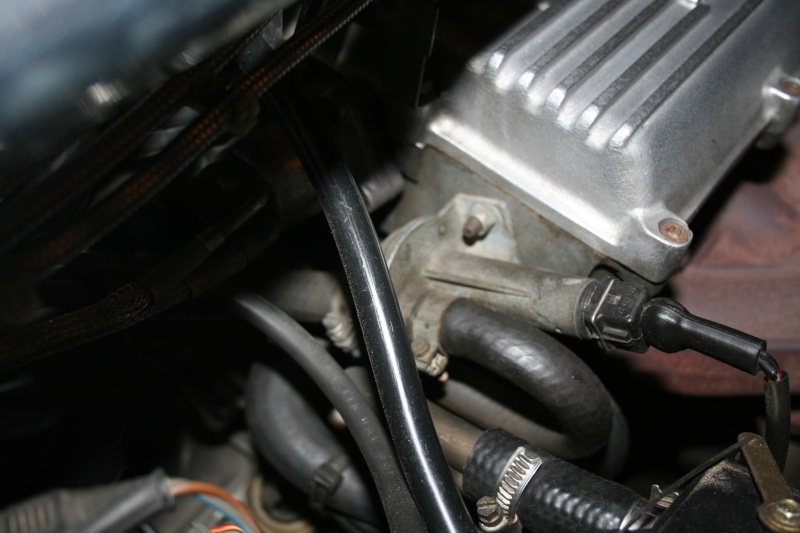

At the question "where does this go ?"


at the question "where does this com from?"

:wink: :wink:
